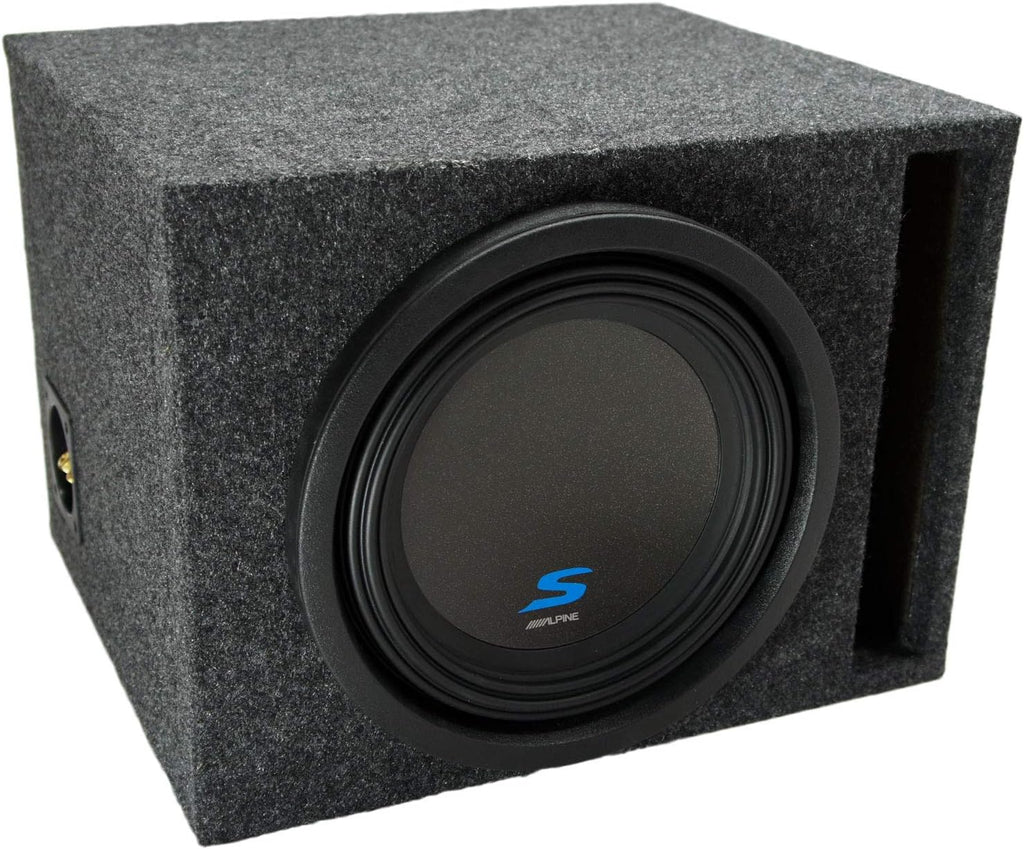

Single 10 Vented Port Car Subwoofer Enclosure N247672

This Package Includes the Following Items:

• 1 x Car Audio Single 10' Vented Subwoofer Stereo Sub Box Ported Enclosure 5/8' MDF
• 1 x Alpine S-W10D4 Car Audio Type S Series Sub Dual 4 Ohm 1200W Peak 10' Subwoofer

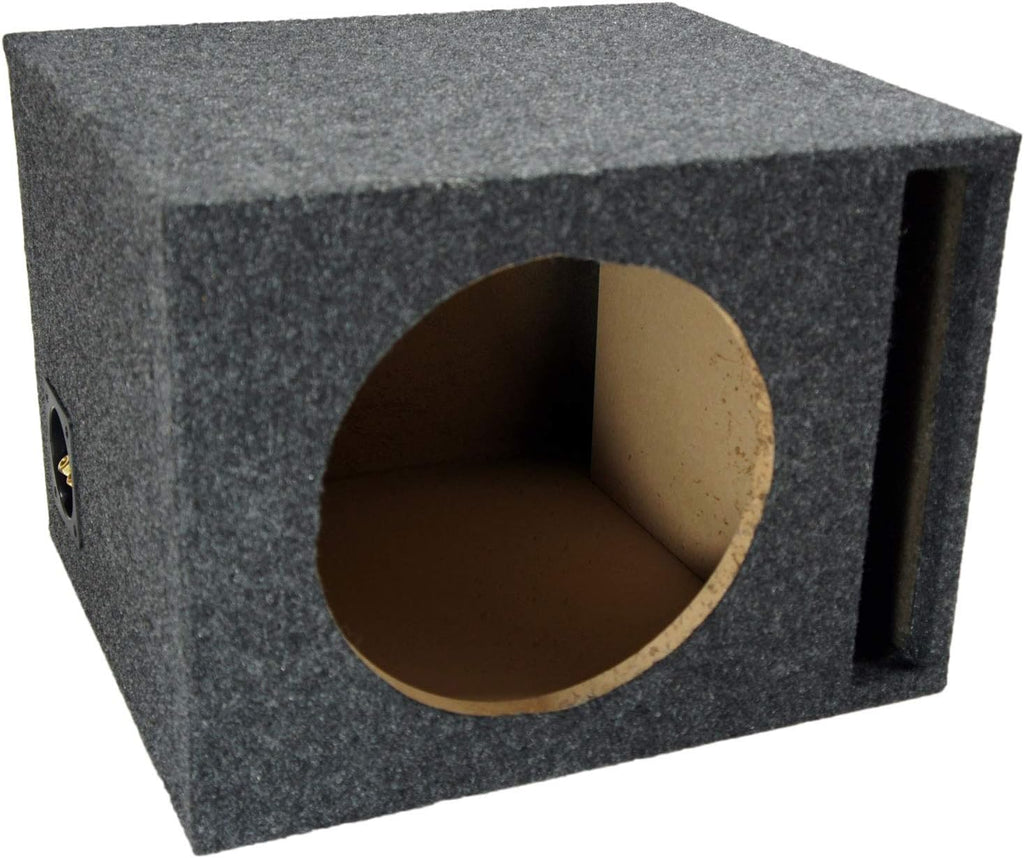

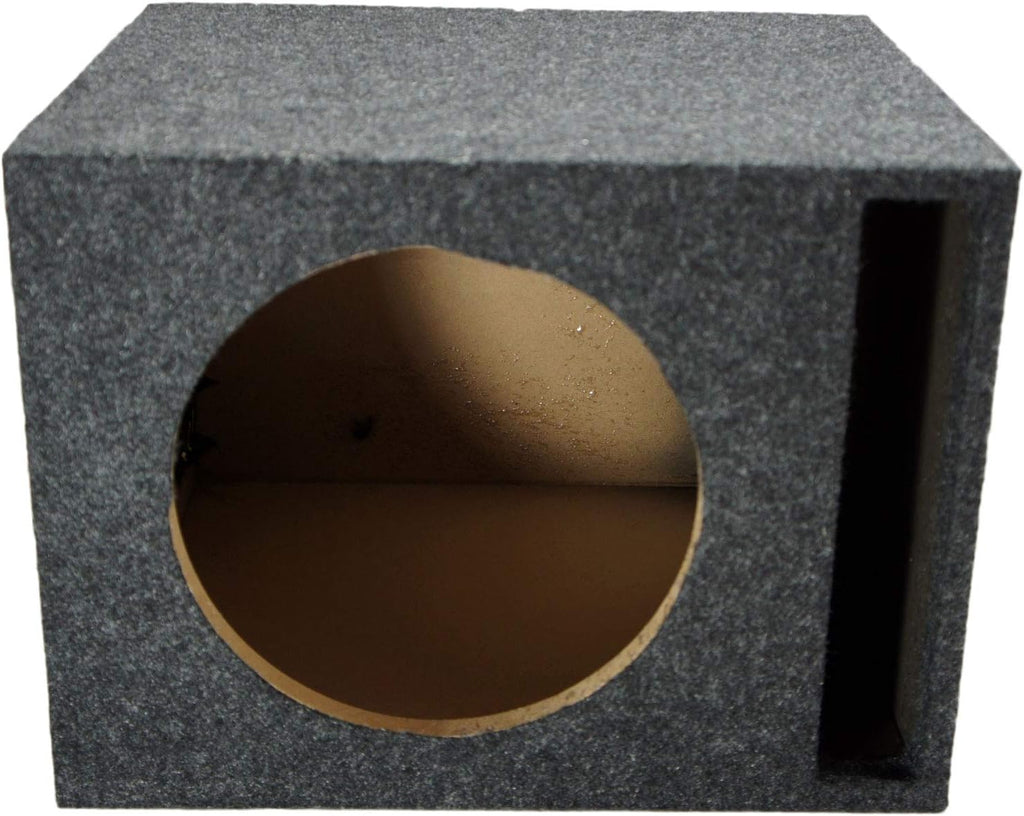

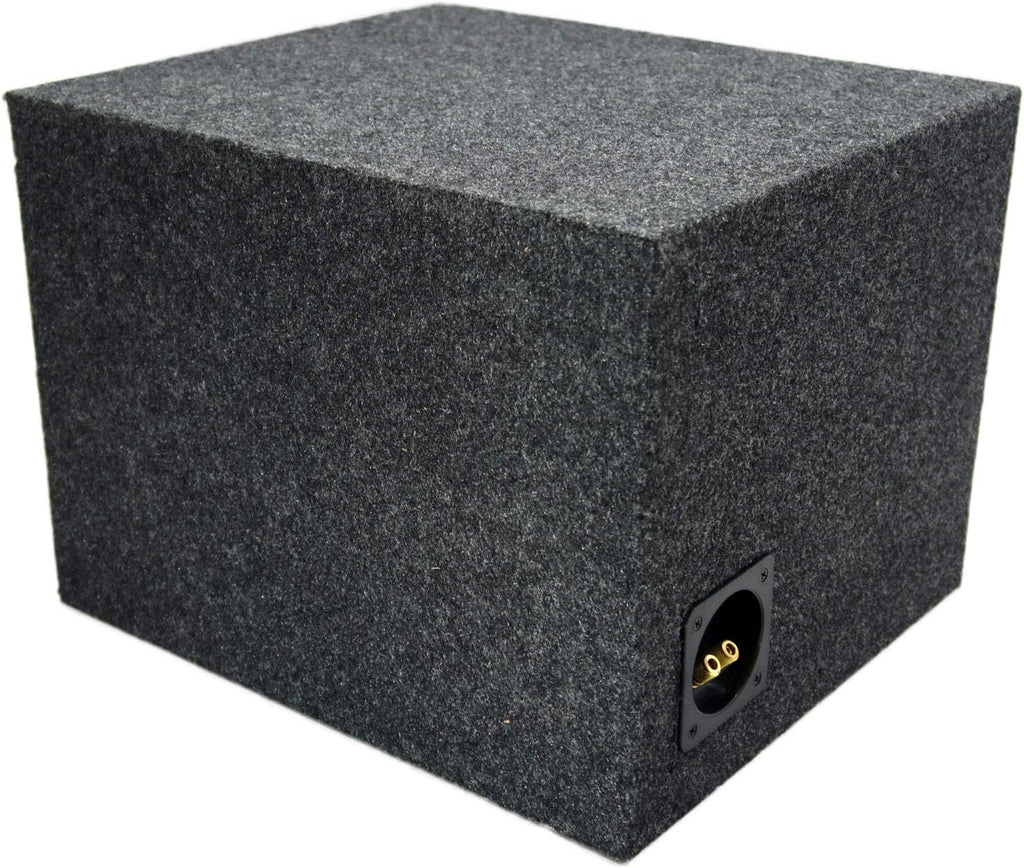

Car Audio Single 10' Vented Subwoofer Stereo Sub Box Ported Enclosure 5/8' MDF:

• Single 10' Vented Sub Box
• • Mounting Depth: 14'
  • Air Space: 1.14 Cubic Feet
  • Vented Enclosure
  • Dimensions: Width 16-1/2' x Height 12-1/4' x Depth 14-1/2'
• Vented design allows for maximum output
• Constructed with High Quality MDF
• High Quality Binding Terminal Cup (Accepts Banana Terminal Plugs OR Bare Wire 'up to 10GA')
• High Quality Gray Carpet

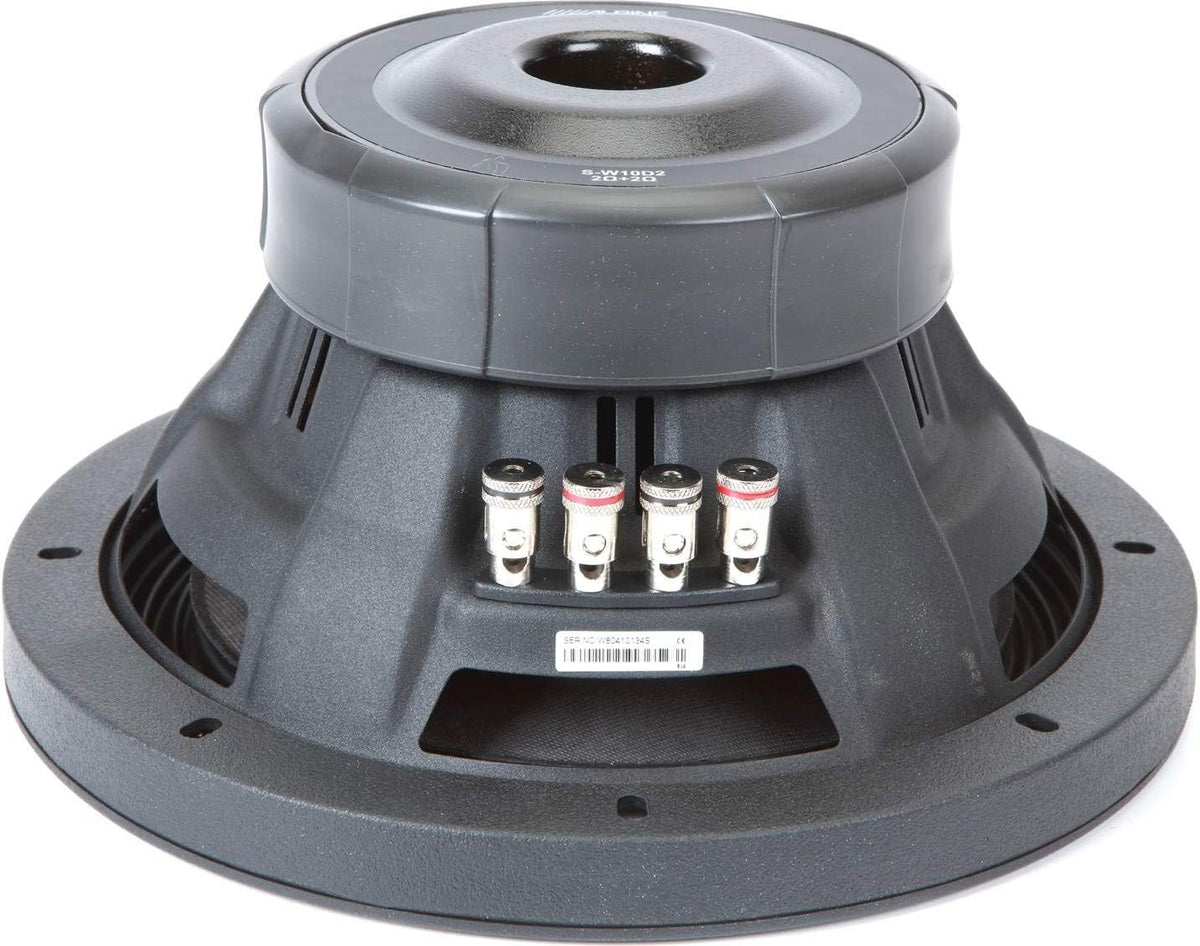

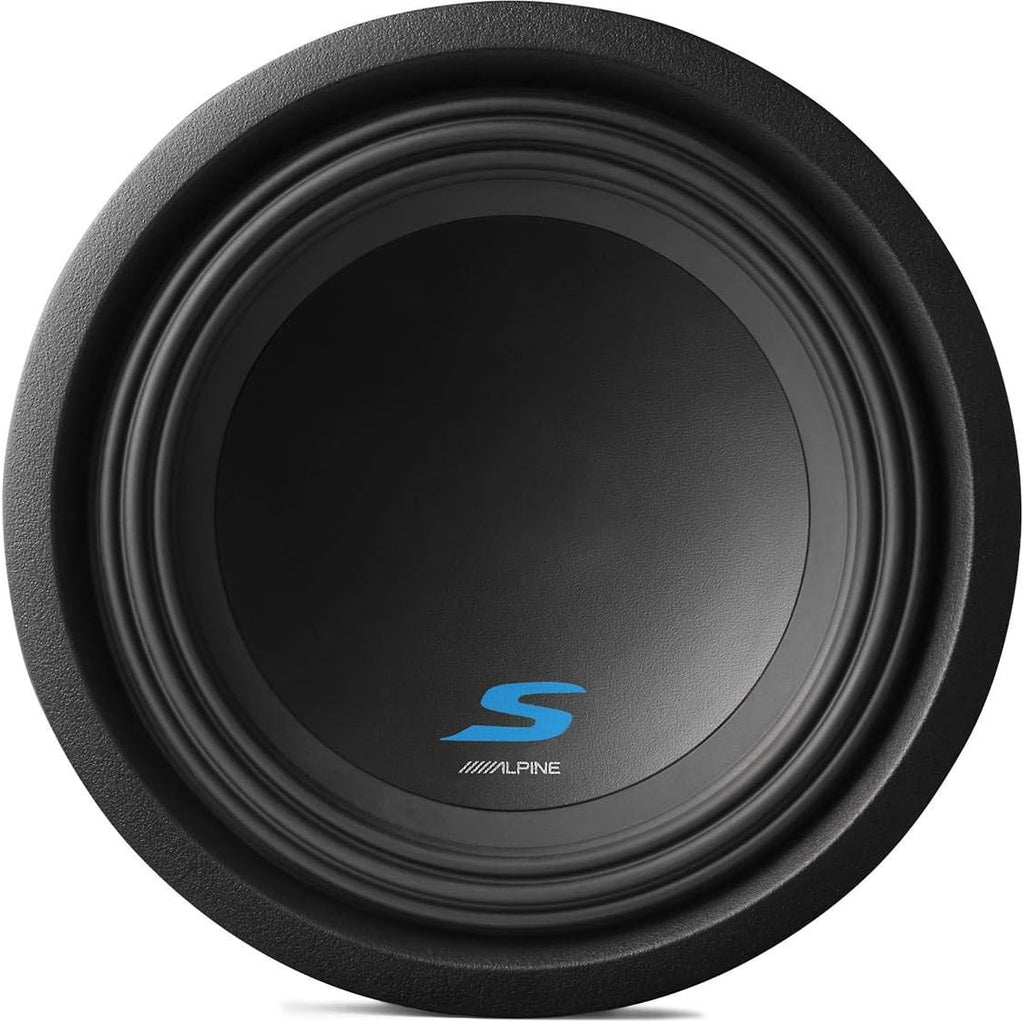

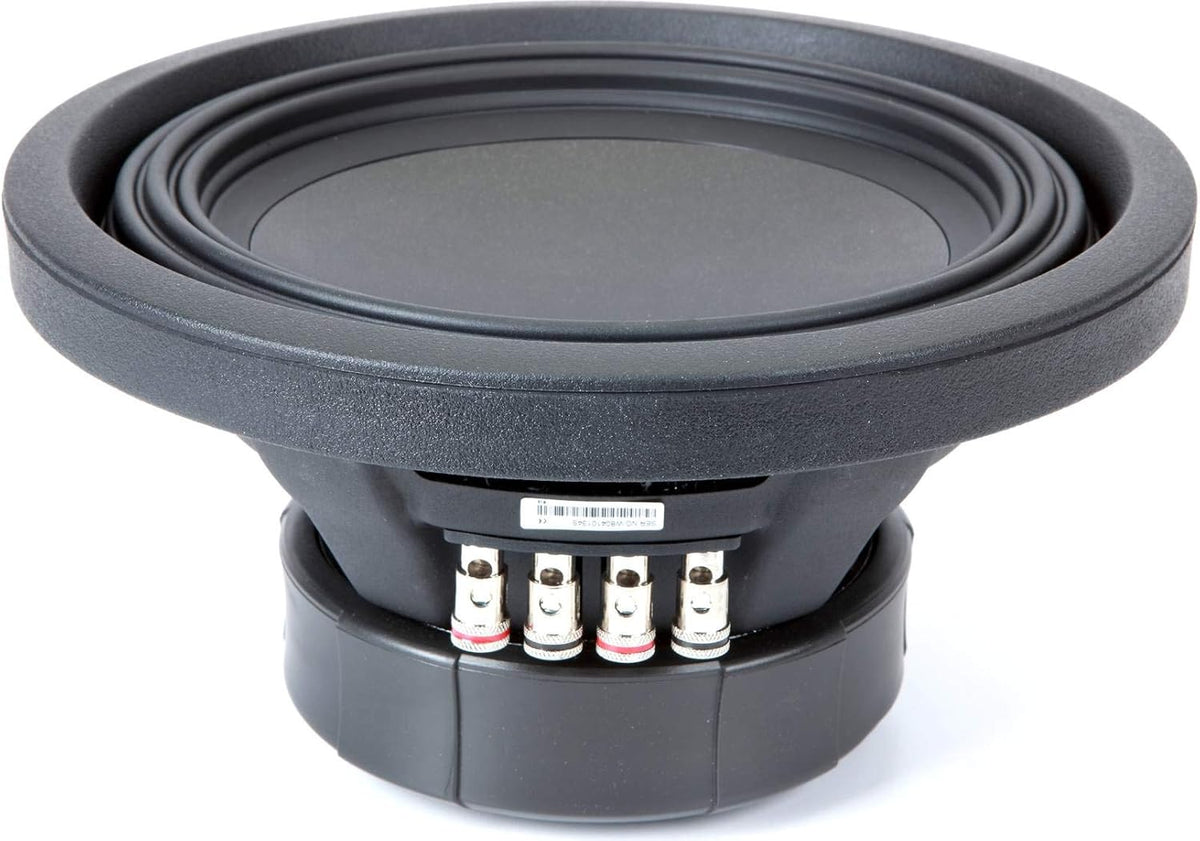

Alpine S-W10D4 Car Audio Type S Series Sub Dual 4 Ohm 1200W Peak 10' Subwoofer:

• General Features:
  • 10' 4 ohm S-Series (Type-S) Subwoofer
  • Power Handling:
    • Peak: 1800 watts
    • RMS: 600 watts
  • Recommended power range: 250- 600W RMS
  • Pulp/Kevlar Cone
  • High Amplitude Multi-Roll (HAMR) Surround
  • Progressive Spider with Reinforced Layer Tinsel Leads
  • Airflow Optimized Dual Flare Pole Vent
  • High Strength Steel Frame Basket
  • 8 AWG Push Terminals with VC Configuration Jumpers
  • Dual Voice Coil
  • High Grade Strontium Ferrite Magnets
  • Top-mount depth: 4-11/16'
  • Cutout diameter: 8-13/16
  • Frequency Response: 26- 200Hz
  • Sensitivity: 86.4dB
  • Resonance Frequency (Fs): 34 Hz
